Installation with LATCH system

Fold the seatback forward. Then return the seatback and secure it at the first lock position (most upright position).

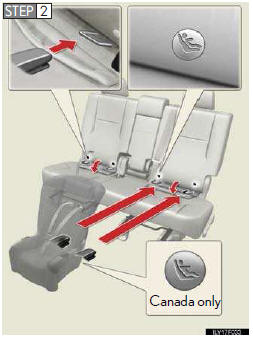

Type A

Type A

Flip the cover (vehicles with third seats), and latch the hooks of lower straps

Flip the cover (vehicles with third seats), and latch the hooks of lower straps onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor. For owners in Canada:

The symbol on a child restraint sys- tem indicates the presence of a lower anchorage system.

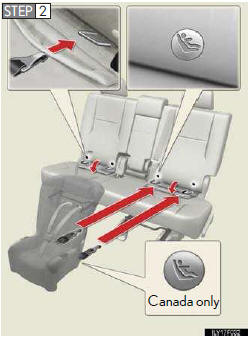

Type B

Flip the cover (vehicles with third seats), and latch the buckles onto the LATCH

Flip the cover (vehicles with third seats), and latch the buckles onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.

For owners in Canada:

The symbol on a child restraint sys- tem indicates the presence of a lower anchorage system.
