Gauges and meters

The units used on the speedometer may differ depending on the target

The units used on the speedometer may differ depending on the target region.

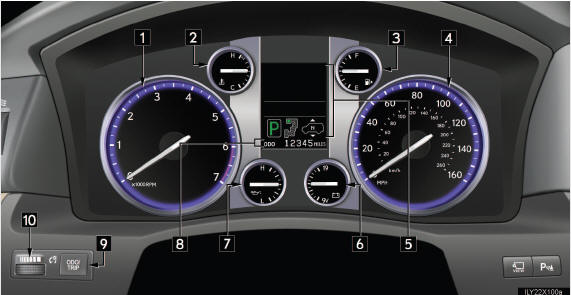

1 Tachometer
Displays the engine speed in revolutions per minute 2 Engine coolant temperature gauge
Displays the engine coolant temperature 3 Fuel gauge
Displays the quantity of fuel remaining in the tank 4 Speedometer
Displays the vehicle speed 5 Multi-information display
Presents the driver with a variety of driving-related data 6 Voltmeter
Displays the charge state 7 Engine oil pressure gauge
Displays the engine oil pressure

8 Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently 9 Odometer/trip meter display change button
Switches between odometer and trip meter displays 10 Instrument panel light control dial
The brightness of the instrument panel light can be adjusted

Switching the display

Pressing this button switches between odometer and trip meter.

1 Odometer

1 Odometer
2 Trip meter A*
3 Trip meter B*

*: Pushing and holding the button will reset the trip meter.

Eco Driving Indicator Light customization

Eco Driving Indicator Light can activated or deactivated.

While the odometer is being

While the odometer is being displayed, press and hold the odometer/trip meter display change button to display the Eco Driving Indicator Light customization screen.

display change button to setPress the odometer/trip meter display change button to set Eco Driving Indicator Light to on or off.

meter display change but-Press and hold the odometer/trip meter display change but- ton to complete the setting.

Instrument panel light control

The brightness of the instrument panel light can be adjusted.

1 Darker

1 Darker
2 Brighter

- The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.

NOTICE

- To prevent damage to the engine and its components
l Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
l The engine may be overheating if the engine coolant temperature gauge is in the red zone (“H”). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely. - While driving
l When the voltmeter indicates more than 19 V or less than 9 V, the battery may be malfunctioning. Have your vehicle checked at your Lexus dealer.
l When the engine oil pressure gauge does not work properly, immediately stop the engine and contact your Lexus dealer.
